Triple Zone Split Tube Furnace
High-Capacity 360mm Large-Diameter Triple Zone Split Tube Furnace – Designed for large-scale material growth and pilot production.
The OYS-1200C-III-360 is a heavy-duty industrial split furnace featuring an ultra-wide φ360 mm high-purity quartz processing tube. Engineered with three independent heating zones, it delivers absolute thermal profile adjustment over extended lengths up to 1200°C.
Equipped with massive stainless steel vacuum end-cap assemblies and 50-segment smart PID programming loops, it provides an exceptional platform for pilot-scale material deposition and high-volume thermal workflows.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.

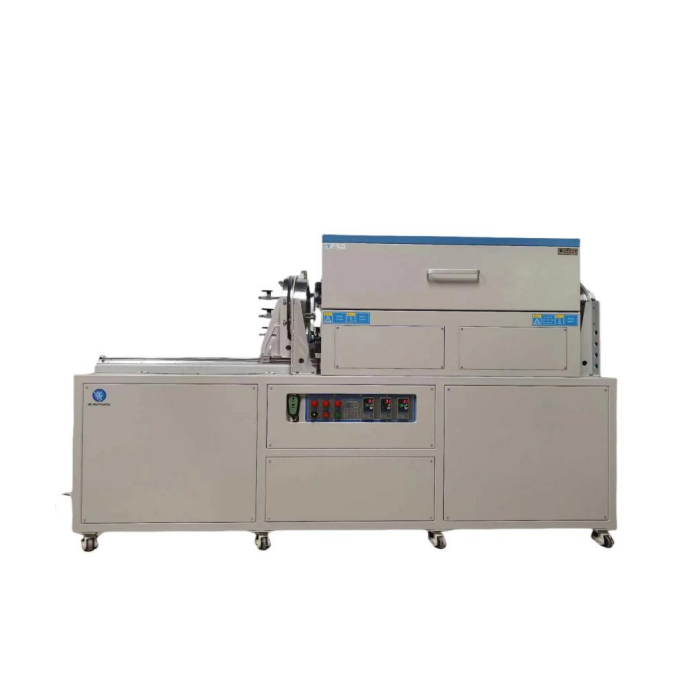

360mm Large-Diameter Triple-Zone Tube Furnace – OYS-1200C-III-360
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment[cite: 1]. The OYS-1200C-III-360 balances the high-capacity throughput of a batch kiln with the precise atmosphere and thermal control of a laboratory tube furnace.
Key Features & Benefits
- Ultra-Wide 360mm Casing – Accommodates large substrates, bulk powder batches, or complex multi-component setups.
- Triple Independent Zones – Three separate program tracks create flat, uniform heat fields or sharp thermal transport gradients.
- Heavy Alumina Fiber Chamber – High-density internal insulation ensures excellent energy containment and rapid response behavior.
- Industrial Flange Package – Complete with heavy-duty structural seals, integrated mechanical dial gauges, and gas porting.
- Certified Assembly – Built to conform with strict international CE, TUV, and cULus safety standards.
Technical Specifications
OYS-1200C-III-360 – Pilot Scale Core Specification
Continuous Working Temp: ≤ 1100°C
Control Structure: 3 Independent Heating Zones
Process Tube Diameter: Φ360 mm Quartz Core
Thermal Profiling: 50-Segment Programmable Automation
Temperature Accuracy: ±1°C
Certifications: CE, TUV, cULus Listed, MET
* Customisation available. Specifications subject to final confirmation.
Applications
Optimized for pilot-scale material synthesis, specialized semiconductor research, chemical vapor deposition (CVD), and bulk structural transformations under protective gas settings.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | OYS-1200C-III-360 |
|---|---|
| Furnace Type | Split Tube Furnace |
| Maximum Temperature | 1100°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 300mm + 300mm + 300mm |
| Dimensions (mm) | 1800mm*700mm*800mm |
| Weight (kg) | 240 |
| Customisation Available | Yes |
| Tube Diameter | 360mm |
| Number of Heating Zones | 1 |
| Voltage | 380V |
| Power (kW) | 1.3 |
