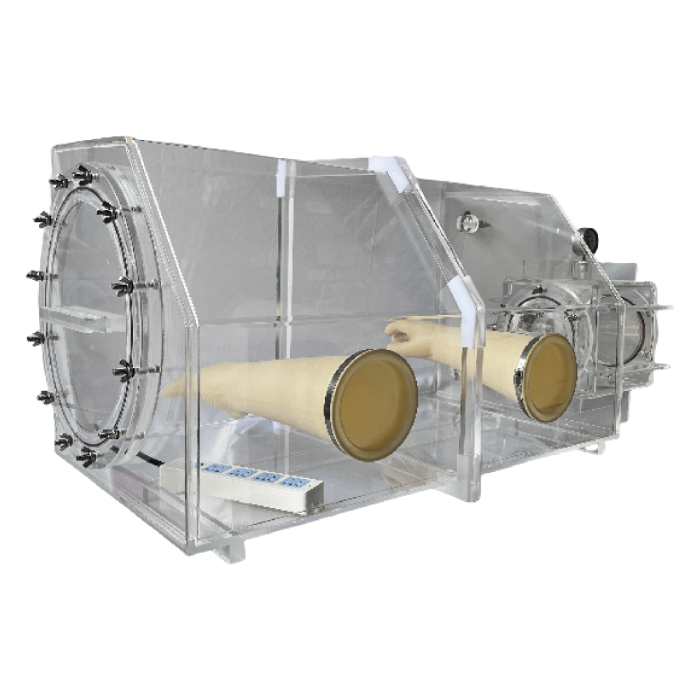

STX-2 Laboratory Two Port Acrylic Glove Box
STX-2 Laboratory Two Port Acrylic Glove Box – Large-capacity inert gas workspace designed for clean anaerobic materials preparation and battery research.
The STX-2 is a premium, CE-certified transparent glove box engineered to provide a secure, isolated atmosphere protected by high-purity inert gases (such as Argon or Nitrogen). Constructed from thick, high-durability transparent polycarbonate/acrylic sheets, it offers an unobstructed, 360-degree view of complex experimental procedures while exhibiting outstanding chemical resistance and easy-to-clean internal surfaces.
Featuring an integrated cylindrical transition chamber, multiple mechanical pressure gauges, four independent gas inlet/outlet valves, and pre-installed heavy-duty protection gloves, this modular system delivers a pristine anaerobic research environment at an exceptional value.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
STX-2 Laboratory Two Port Acrylic Glove Box
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The STX-2 Laboratory Two Port Acrylic Glove Box is specifically engineered for advanced research environments where ambient moisture and oxygen must be excluded. By enabling rapid inert gas purging through independent entry/exit ports, this transparent glove box provides a highly stable, positive-pressure inert workspace. Its durable polycarbonate architecture is widely adopted by leading research universities and battery laboratories across the United Kingdom for nanotech formulation, chemical compounding, and oxygen-sensitive handling.
Key Features & Benefits
- 360-Degree Optical Clarity – Precision-welded from premium, high-transparency 6mm polycarbonate sheets, allowing researchers to clearly monitor complex procedures from any angle.
- Integrated Transition Chamber – Features an attached cylindrical lock chamber with a large-diameter quick-opening door, permitting the safe introduction and removal of samples without cross-contaminating the main working atmosphere.
- Electricity & Utility Integration – Equipped with a safe three-core electrical plug pass-through to power internal analytical balances, mixers, or hotplates within the sealed environment.
- Robust Atmospheric Protection – Outfitted with four independent metal ball valves (supporting quick gas purging and vacuum draw on the transition chamber) alongside a high-precision analog pressure gauge to maintain optimal pressure thresholds.
- Heavy-Duty Chemical Gloves – Pre-installed with ultra-durable, chemically resistant latex gloves (150 mm port diameter) to offer robust hand protection and comfortable dexterity during long experimental runs.
- Certifications & Quality Compliance – Fully conforms to international CE and UL safety protocols, using robust hardware to guarantee long-term atmosphere integrity.
Technical Specifications
STX-2 Laboratory Two Port Acrylic Glove Box Specifications
• Working Environment: Stable inert gas protection (Argon, Nitrogen, Helium)
• Main Chamber Vacuum Capability: Cannot withstand deep vacuum (Internal pressure must not fall below 500 Torr)
• Transition Chamber Vacuum Limit: Down to 100 Torr (Roughing vacuum allowable for rapid gas exchange)
• Maximum Permissible Positive Pressure: 1.1 atm (1.1 bar)
• Purging Humidity Threshold: Achieves down to 15% RH when paired with optional gas drying systems
Chamber Dimensions & Layout:
• Main Workspace Size (L × W × H): 900 × 500 × 500 mm
• Transition Chamber Size (L × W × H): 240 × 240 × 240 mm (Cylindrical inner diameter: 230 mm)
• Transition Chamber Outer Door Diameter: Φ400 mm
• Glove Port Diameter: Φ150 mm
• Structural Shell Thickness: 6 mm Premium Polymethyl Methacrylate (PMMA / Polycarbonate)
Fittings & Electrical Support:
• Utility Interface: 3-Core power plug pass-through
• Gas Plumbing Fittings: 4 × High-durability ball valves (supporting quick gas swap and vacuum connections)
• Main Valve Fittings: Φ6.35 mm (1/4") compression joints
• Pressure Monitoring: Dual mechanical dial pressure gauges (on main and transition chambers)
Dimensions & Weight:
• External Dimensions (L × W × H): 1260 × 560 × 560 mm
• Net Weight: ≈ 20 kg
* Customisation available. Specifications subject to final confirmation.
Safety Warning: This glove box is constructed from plexiglass materials. Pulling a vacuum on the main chamber is strictly prohibited, as excessive negative pressure will cause the transparent shell to implode. Standard vacuum pumps should only be connected to the transition lock chamber to purge air before transferring items.
Applications
Perfect for lithium-ion battery research, perovskite solar cell assembly, nano-material synthesis, air-sensitive chemical reactions, biochemistry handling, pharmaceutical compounding, and protective atmosphere operations requiring complete visual clarity.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | STX-2 |
|---|---|
| Dimensions (mm) | 1260mm*560mm*560mm |
| Weight (kg) | 20 |
| Customisation Available | Yes |
| Voltage | 220V - 230V |
