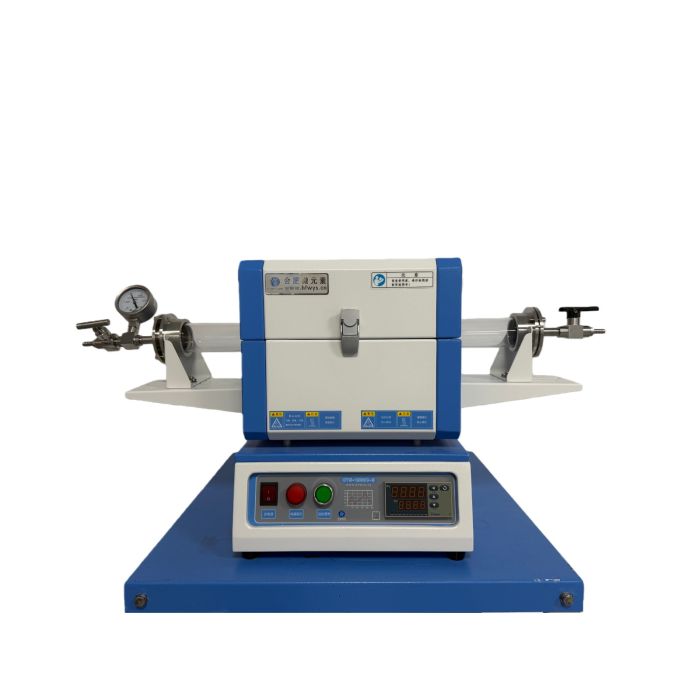

1200°C Mini Flip-Top Tube Furnace
High-performance 1200°C Flip-Top Tube Furnace – Ideal for UK research & materials science.
The OYS-1200C-S is a compact, CE-certified flip-top tube furnace offering precise temperature control up to 1200°C with ±1°C accuracy. Available with φ25 mm or φ50 mm high-purity quartz tubes, it is perfect for sintering, annealing, and synthesis under vacuum or controlled atmospheres.
Featuring a user-friendly 50-segment programmable controller, stainless steel flanges, and excellent temperature uniformity, this benchtop furnace delivers professional laboratory performance at an exceptional price.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1200°C Mini Flip-Top Tube Furnace – OYS-1200C-S Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The OYS-1200C-S mini flip-top tube furnace delivers professional-grade performance in a compact footprint, making it ideal for space-conscious laboratories and precise high-temperature experiments.
Key Features & Benefits
- Flip-Top Design – Effortless access for sample insertion/removal and easy tube replacement.
- Advanced Insulation – High-purity alumina fibre chamber with US-imported high-temperature alumina coating for maximum heat reflection, reduced energy loss, and extended service life.
- Double-Shell Structure – Air-cooled outer shell keeps external temperatures low and improves safety and comfort.
- Precise Temperature Control – YD858 PID controller with auto-tuning and 50 programmable segments. Independent zone control (single or dual-zone models).
- High Reliability – K-type thermocouple, Fe-Cr-Al heating elements, and premium components including ABB electrical parts and UL-certified wiring.
- Certifications – CE, UL, MET compliant for full peace of mind in UK/EU research environments.
Technical Specifications
OYS-1200C-S – Single Zone Mini Split Tube Furnace
Continuous Working Temperature: ≤ 1100°C
Heating Zone Length: 200 mm
Quartz Tube Size: Φ25×600 mm / Φ50×600 mm
Rated Power: 1.3 kW
Voltage: 220V
External Dimensions: 730 × 330 × 440 mm
Weight: ≈ 21 kg
Recommended Heating Rate: ≤ 10°C/min
OYS-1200C-S-II – Dual Zone Mini Split Tube Furnace
Continuous Working Temperature: ≤ 1100°C
Heating Zone Length: 100 mm + 100 mm (Dual Zone)
Quartz Tube Size: Φ25×600 mm / Φ50×600 mm
Rated Power: 1.3 kW
Voltage: 220V
External Dimensions: 730 × 330 × 440 mm
Weight: ≈ 21 kg
Control: Independent PID control for each zone
* Customisation available. Specifications subject to final confirmation.
Applications
Perfect for synthesis, annealing, sintering, material testing, CVD processes (with accessories), and general high-temperature research in universities, R&D institutes, and advanced manufacturing.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | OYS-1200C-S |
|---|---|
| Furnace Type | Split Tube Furnace |
| Maximum Temperature | 1200°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 200mm |
| Dimensions (mm) | 730mm*330mm*440mm |
| Weight (kg) | 21 |
| Customisation Available | Yes |
| Tube Diameter | 25mm, 50mm |
| Number of Heating Zones | 1 |
| Voltage | 220V - 230V |
| Power (kW) | 1.3 |
