Split Tube Furnace 1200°C – φ25 to φ100mm Quartz Tube
Powerful 1200°C Split Tube Furnace with 440mm heating zone – Ideal for advanced materials research.
The OYS-1200C is a robust, CE-certified openable split tube furnace designed for universities and research institutes. With a long 440mm uniform heating zone and support for quartz tubes from φ25mm to φ100mm, it delivers excellent temperature uniformity (±1°C) and supports vacuum or controlled atmosphere sintering, annealing, and synthesis.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.

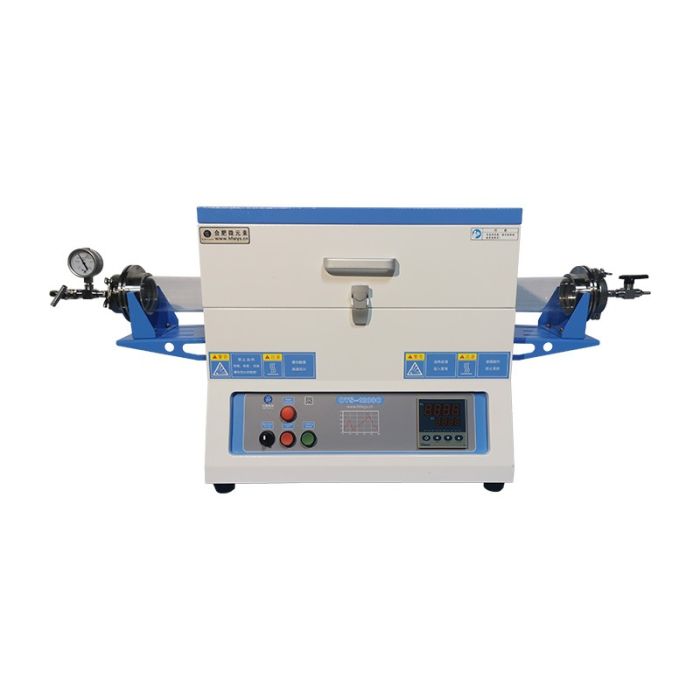

OYS-1200C Series 1200°C Split Tube Furnace (Openable / Clamshell Design)
Advanced openable split tube furnace with double-layer air-cooled structure and high-purity alumina fiber chamber. Features excellent thermal insulation, high energy efficiency, and imported high-temperature alumina coating. Ideal for universities, research institutes, and industrial labs requiring precise high-temperature processing under vacuum or controlled atmospheres.
Key Features
- Maximum Temperature: 1200°C (< 0.5 h)
- Continuous Working Temperature: ≤ 1100°C
- Recommended Heating Rate: ≤ 10°C/min
- Heating Elements: High-quality Fe-Cr-Al alloy resistance wire
- Thermocouple: K-type
- Temperature Accuracy: ±1°C
- Controller: YD858 intelligent PID with 50 programmable segments, auto-tuning, over-temperature & thermocouple break alarm
- Structure: Double-shell with cooling fan system
- Certifications: CE, UL, MET with premium components (ABB, OMEGA, etc.)
Technical Specifications
OYS-1200C – Single Zone
Heating Zone: 440 mm
Quartz Tube: φ25 / φ50 / φ60 / φ80 / φ100 mm x 1000 mm
Power: 3.1 kW
Voltage: 220V
Dimensions: 1030 × 460 × 550 mm
Weight: ≈ 56 kg
OYS-1200C-II – Dual Zone
Heating Zone: 200 mm + 200 mm
Quartz Tube: φ25 / φ50 / φ60 / φ80 / φ100 mm x 1000 mm
Power: 3.1 kW
Voltage: 220V
Dimensions: 1030 × 460 × 550 mm
Weight: ≈ 56 kg
OYS-1200C-III – Triple Zone
Heating Zone: 300 + 300 + 300 mm
Quartz Tube: φ50 / φ60 / φ80 / φ100 / φ130 mm x 1400 mm
Power: 7.1 kW
Voltage: 220V
Dimensions: 1530 × 510 × 610 mm
Weight: ≈ 100 kg
* Customisation available. Specifications subject to final confirmation.
Why Choose OYS-1200C Series?
- Easy-access split (clamshell) design for convenient operation
- Multiple independent temperature zones available
- Excellent temperature uniformity and energy efficiency
- Supports vacuum and various gas atmospheres
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | OYS-1200C-C |
|---|---|
| Furnace Type | Split Tube Furnace |
| Maximum Temperature | 1200°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 440mm |
| Dimensions (mm) | 1030mm*460mm*550mm |
| Weight (kg) | 56 |
| Customisation Available | Yes |
| Tube Diameter | 25mm, 50mm, 60mm, 80mm, 100mm |
| Number of Heating Zones | 1 |
| Voltage | 220V - 230V |
| Power (kW) | 3.1 |
