High-Vacuum Pumping Station

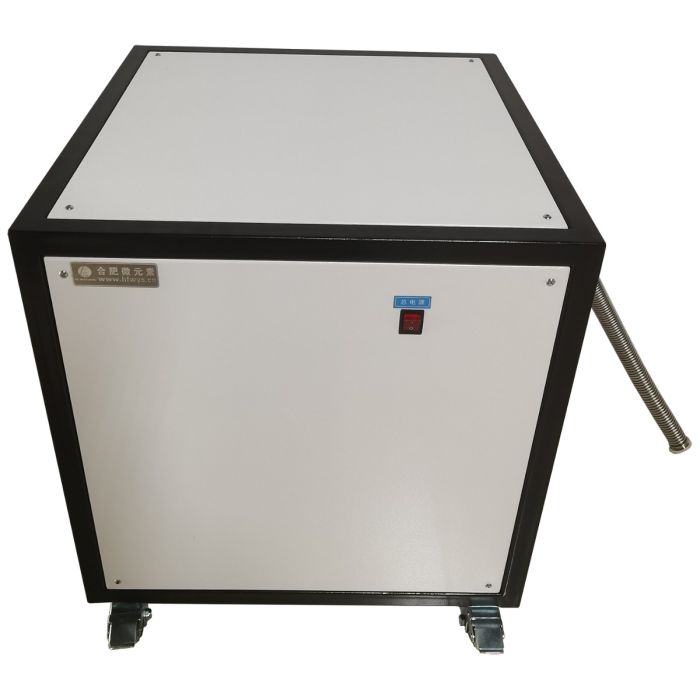

High-Vacuum Pumping Station Module – JXB-12 Series

Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The JXB-12 high-vacuum pumping station module is engineered to consolidate delicate vacuum pumps, valves, and diagnostic monitoring systems into a single mobile, impact-resistant chassis. Designed with a flat top surface, it functions as a highly robust base that sits directly under standard laboratory tube or muffle furnaces. By integrating a dual-stage oil-sealed pump with precise digital resistance sensing and high-vacuum manual muffle baffle isolation, the JXB-12 provides academic and industrial labs across the United Kingdom with a highly reliable, leak-free atmosphere management station.

Key Features & Benefits

• Turn-Key Integrated Vacuum Base – Houses the vacuum pump, high-vacuum muffle baffle valves, digital vacuum controllers, and plumbing connections inside a heavy-duty, mobile steel cabinet, keeping your laboratory organized and professional.
• Deep Vacuum Performance – Paired with the heavy-duty TRP-12 dual-stage rotary vane pump, the system reaches ultimate vacuum levels down to 10⁻³ Torr (1.0 × 10⁻¹ Pa), ideal for clean, oxygen-free firing runs.
• Smart Digital LCD Monitoring – Features an integrated digital resistance vacuum gauge displaying live pressure measurements from 1.0 × 10⁻¹ Pa up to standard atmosphere (1.0 × 10⁵ Pa) on an easy-to-read LCD screen.
• High-Vacuum Manual Muffle Baffle Valve – Equipped with a high-purity stainless steel manual muffle baffle valve utilizing bellows seals and standard KF25 connections to achieve a ultra-low leakage rate of ≤ 5.0 × 10⁻⁶ Pa·m³/s.
• Space-Optimized Frame with Castors – Flat top-surface profile (610 × 410 mm) is engineered to hold standard benchtop furnaces, maximizing vertical room. Built-in heavy-duty castors with locking brakes allow easy transport and secure station placement.
• Certifications & Quality – Fully conforms to international CE, UL, and MET standards using globally recognized electrical sub-systems (such as ABB breakers and UL-certified wiring networks).

Technical Specifications

* Customisation available. Specifications subject to final confirmation.
Safety Warning: Standard oil-sealed rotary vane pumps are designed for non-corrosive, non-explosive gases. If your process outgasses aggressive acid vapors, moisture, or solvents, please contact our engineers to integrate specialized chemical traps, cold traps, or synthetic fluid packages.

Applications

Perfect for vacuum furnace support, inert atmosphere purging, Chemical Vapor Deposition (CVD/PECVD) processing, non-corrosive degassing, low-pressure thermal treatment, and mobile laboratory vacuum utility.
