Gas Mixing Station with Multi Channel Float Flowmeters Gas Control System
Highly Economical Gas Mixing Station with Multi Channel Float Flowmeters Gas Control System – Mobile, electricity-free mixing cabinet designed for budget-conscious inert gas purging and atmosphere management.

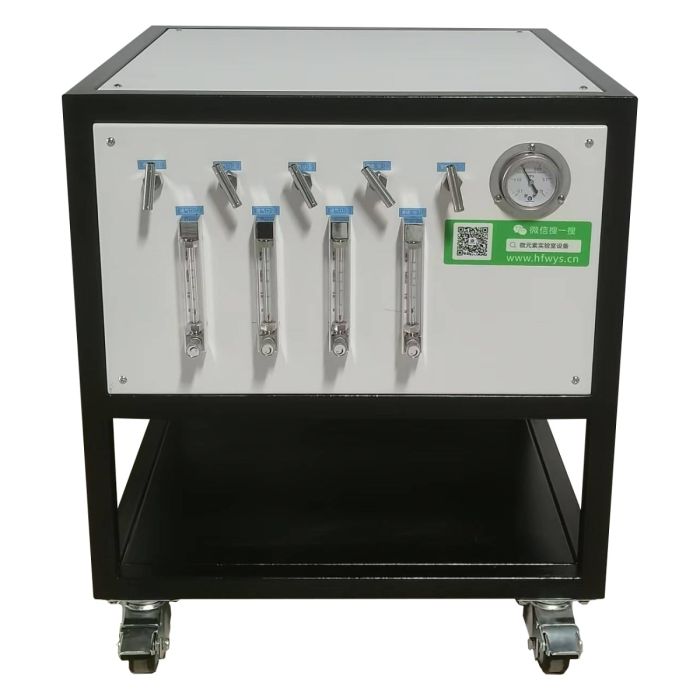

The GYS-xF Series is a practical, CE-compliant gas mixing system engineered to deliver cost-effective and highly reliable flow control of inert gases. Operating on clean mechanical principles with an accuracy threshold of 4%, it requires absolutely no electrical power connection. It is available in modular 2, 3, or 4-channel configurations, with the entire gas manifold, mixing vessels, and high-purity piping integrated into a heavy-duty mobile cabinet with locking caster wheels.
Featuring highly readable mechanical glass flowmeters, fine-tuning needle control valves, and high-purity fluid pathways, this robust gas mixing station serves as the perfect companion system for tube furnaces, glove muffle enclosures, plasma cleaners, and basic CVD setups across UK institutions.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
Gas Mixing Station with Multi Channel Float Flowmeters Gas Control System – GYS-xF Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The GYS-xF series gas delivery system (featuring GYS-2F, GYS-3F, and GYS-4F builds) provides academic and industrial laboratories across the United Kingdom with a budget-friendly, highly robust gas-purging hub. By removing the electronic complexities of standard MFCs, this purely mechanical float-flow system operates entirely without electricity, eliminating risks of signal interference or power-drop interruptions. Outfitted with high-durability glass rotameters, an integrated stainless steel mixing tank, and smooth manual needle adjustment valves, it represents an incredibly stable baseline for managing inert atmospheres inside high-temperature muffle or tube furnaces.
Key Features & Benefits
- Purely Mechanical Flow Control – Requires no electrical power to operate, making it exceptionally safe, highly durable, and immune to power fluctuations or electrical line noise.
- High-Readability Rotameters – Clear glass float tubes provide instant, highly accurate volumetric feedback (4% accuracy) under low-pressure laboratory environments.
- Heavy-Duty Mobile Workspace – Integrated within a structural metal cart equipped with rolling casters and brake steps. The cabinet's robust top-plate serves as an excellent space-saving platform to hold your tube muffle furnace directly.
- Homogeneous Gas Mixing – Built with an internal, high-integrity stainless steel mixing vessel (Φ76 × 154 mm) connected to front-facing manual needle valves, assuring perfect gas homogenization before introduction to the process tube.
- Reliable Gas Seals & Fittings – Built with high-purity 6.35 mm (1/4 inch) PTFE and stainless steel plumbing paths coupled with reliable double-ferrule compression Swagelok-style connectors to prevent backflow and leaks.
- Flexible Multi-Channel Scale – Available in modular 2-channel (GYS-2F), 3-channel (GYS-3F), or 4-channel (GYS-4F) builds with customizable rotameter limits.
Technical Specifications
GYS-2F / 3F / 4F – Series Float Purging Specifications
• Operational Power: 0 W (No electricity required)
• Float Flowmeter Accuracy: 4% FS (Full Scale)
• Max System Pressure Limit: 0.15 MPa (Operating pressure: 0.07 to 0.25 MPa recommended via reducing valves)
• Mechanical Pressure Gauge Range: -0.1 to 0.15 MPa
• Internal Mixing Tank Size: Φ76 × 154 mm (High-Purity Stainless Steel)
• Connection Porting: 6.35 mm (1/4") double-ferrule compression fittings
• Internal Plumbing Materials: High-Purity Stainless Steel and PTFE
Modular Channel Models:
• GYS-2F (Mini): 2 Independent Gas Channels (Supports single inlet/single outlet or 2 mixed gases)
• GYS-3F: 3 Independent Gas Channels (Supports 2-gas mixing + 1 independent channel bypass)
• GYS-4F: 4 Independent Gas Channels (Supports 3-gas mixing + 1 independent channel bypass)
Standard Rotameter Ranges (Customizable upon request):
• Low Range: 10 to 100 mL/min
• Medium Range: 16 to 160 mL/min / 25 to 250 mL/min / 30 to 500 mL/min
• High Range: 0.1 to 1 L/min (Other ranges down to 5-50 mL/min fully customizable)
Dimensions & Weight:
• External Cabinet Dimensions (W × D × H): 610 × 510 × 710 mm
• Net Weight: ≈ 30 kg
* Customisation available. Specifications subject to final confirmation.
Safety Warning: Standard configurations are recommended exclusively for non-flammable, non-toxic inert gases (such as Argon, Nitrogen, Helium). Do not use this system with aggressively corrosive, toxic, or acid-forming compounds without prior consultation and engineering upgrades.
Applications
Perfect for low-pressure, low-flow inert gas purging inside tube furnaces and glove muffle enclosures, simple plasma cleaning preparation, protective atmosphere calcining and annealing, and budget-friendly multi-gas switching and blending experiments.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | GYS-xF |
|---|---|
| Dimensions (mm) | 610mm*610mm*710mm |
| Weight (kg) | 30 |
| Customisation Available | Yes |
| Voltage | 220V - 230V |
