1500°C Dual-Zone Tube Furnace
Multi-Zone 1500°C Silicon Carbide Tube Furnace – Ideal for precise vapor transport and temperature gradient profiling.
The GYS-1500C Dual-Zone Series is an advanced multi-temperature system using heavy-duty Silicon Carbide (SiC) elements to generate stable environments up to 1500°C. Each heating block spans 300mm and runs on separate PID loops to establish customized thermal curves.
Fitted with a dense corundum process line and a full stainless-steel vacuum flange package (with pressure gauge and cutoff valves), it delivers premier gas and atmosphere management for high-end research setups[cite: 16].
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.

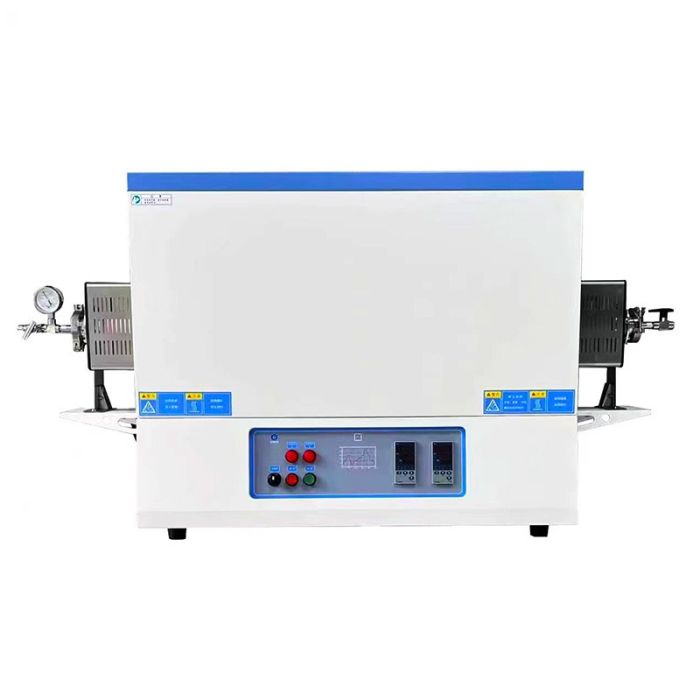

1500°C Dual-Zone High-Temperature Tube Furnace
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment[cite: 1]. The GYS-1500C multi-zone series gives material scientists independent control over distinct heating environments inside a single processing core, enabling complex thermal workflows[cite: 16].
Key Features & Benefits
- Independent Zone Control – Dual 300mm zones let operators create stable thermal slopes or long uniform soaking zones.
- SiC Heating Network – Rugged side-mounted structural bars provide fast ramp times and reliable continuous usage up to 1400°C[cite: 16].
- Complete Vacuum Flange Kit – Includes dual mechanical gauges, high-vacuum silicone gaskets, and needle valves ready for gas processing out of the box[cite: 16].
- Advanced Safety Suite – Features full thermocouple break isolation, over-temp alarms, and automated cool-down loops[cite: 16].
- Industrial Component Paths – Built using global industry parts including ABB controls and CE/UL/MET compliant sub-systems[cite: 16].
Technical Specifications
GYS-1500C-II – Dual Zone High-Temperature Specification
Continuous Working Temperature: ≤ 1400°C [cite: 16]
Heating Zone Layout: 300 mm + 300 mm (Independent Control)
Corundum Tube Options: Φ60 / Φ80 / Φ100 mm
Rated Power: 11.0 kW
Voltage: 380V (Three-Phase)
External Dimensions: 1450 × 500 × 820 mm
Weight: ≈ 115 kg
Thermocouple Config: Dual S-Type [cite: 16]
* Customisation available. Specifications subject to final confirmation[cite: 230].
Applications
Perfect for Chemical Vapor Deposition (CVD), Physical Vapor Transport (PVT), structured crystal growth, multi-stage calcining, and advanced multi-component coatings[cite: 16].
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service[cite: 1, 2].
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | GYS-1500C-II |
|---|---|
| Furnace Type | Tube Furance |
| Maximum Temperature | 1500°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 300mm + 300mm |
| Dimensions (mm) | 1450mm*500mm*820mm |
| Weight (kg) | 115 |
| Customisation Available | Yes |
| Tube Diameter | 60mm, 80mm, 100mm |
| Number of Heating Zones | 2 |
| Voltage | 380V |
| Power (kW) | 11 |
