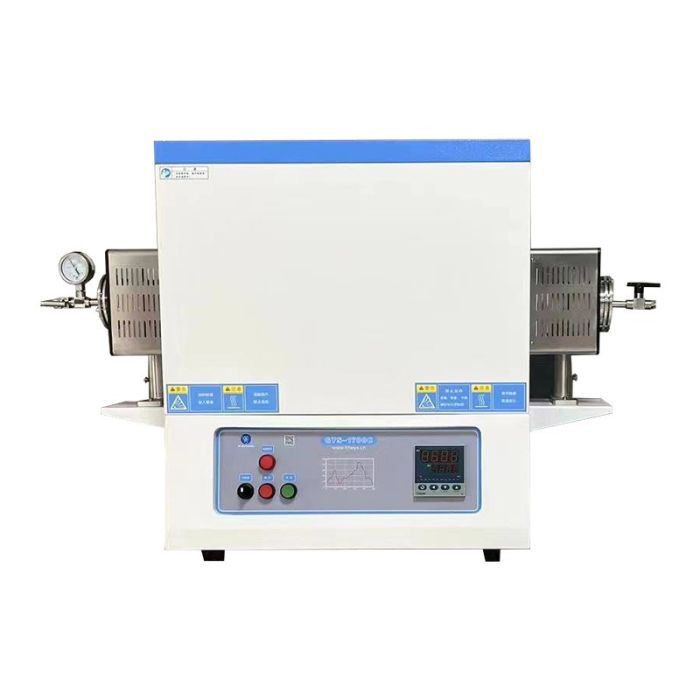

1700°C High-Temperature Tube Furnace
Ultra-High Temperature 1700°C Tube Furnace – Built for extreme thermal processing and technical materials discovery.
The GYS-1700C Series integrates premium Silicon Molybdenum (MoSi2) heating components to safely achieve extreme temperature processing up to 1700°C. It features dense corundum process tubes monitored by ultra-stable B-type platinum-rhodium thermocouples.
Designed for space-restricted and high-capacity frameworks with independent 50-segment PID control curves, this setup delivers ultimate consistency for complex materials sintering under vacuum or inert architectures[cite: 16].
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1700°C Ultra-High Temperature Corundum Tube Furnace
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment[cite: 1]. The 1700°C high-temperature sequence implements high-grade MoSi2 heating rods paired with energy-efficient multi-layer alumina insulation to handle intense continuous operations up to 1600°C[cite: 16].
Key Features & Benefits
- Silicon Molybdenum (MoSi2) Elements – High-grade heating bars offer superior resistance to oxidative scaling at extreme temperatures[cite: 16].
- Recrystallized Alumina Assembly – Premium corundum reaction lines prevent thermal shock cracking and hold atmospheric purity[cite: 16].
- Controlled Thermal Gradients – Features strict ramp protocols (≤10°C/min under 1400°C, stepping down to ≤5°C/min from 1400°C to 1600°C)[cite: 16].
- Industrial Fail-Safe Loops – Overheat cutoff, break sensor protection, and dynamic fan loops shield internal components from sudden line variance[cite: 16].
- Global Part Certification – Assembled using market-proven infrastructure including ABB breakers and CE/UL certified components[cite: 16, 17].
Technical Specifications
GVS-1700C-S – Compact 1700°C Tube Furnace
Continuous Working Temperature: ≤ 1600°C [cite: 16]
Heating Zone Length: 170 mm
Corundum Tube Options: Φ50 × 800 mm / Φ60 × 800 mm
Rated Power: 2.6 kW
Voltage: 220V
External Dimensions: 850 × 420 × 670 mm
Weight: ≈ 55 kg
GYS-1700C – Extended 1700°C Tube Furnace
Continuous Working Temperature: ≤ 1600°C [cite: 16]
Heating Zone Length: 300 mm
Corundum Tube Options: Φ50 / Φ60 / Φ80 / Φ100 × 1000 mm
Rated Power: 5.6 kW
Voltage: 220V
External Dimensions: 1010 × 510 × 780 mm
Weight: ≈ 155 kg
* Customisation available. Specifications subject to final confirmation[cite: 230].
Applications
Tailored for high-temperature glass melting, technical ceramic calcination, aerospace material alloy discovery, and high-vacuum sinter setups[cite: 16].
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | GYS-1700C |
|---|---|
| Furnace Type | Tube Furance |
| Maximum Temperature | 1700°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 300 |
| Dimensions (mm) | 1010mm*510mm*780mm |
| Weight (kg) | 75 |
| Customisation Available | Yes |
| Tube Diameter | 50mm, 60mm, 80mm, 100mm |
| Number of Heating Zones | 1 |
| Voltage | 220V - 230V |
| Power (kW) | 5.6 |
