1500°C High-Temperature Tube Furnace
Advanced 1500°C Silicon Carbide Tube Furnace – Built for high-order corundum treatments and ceramic engineering.
The GYS-1500C Series delivers robust thermal performance utilizing rugged Silicon Carbide (SiC) heating elements to reliably achieve 1500°C processing thresholds. Pairing high-purity corundum (alumina) tubes with S-type precision thermocouples, it handles strict atmospheric control processes smoothly.
With independent smart 50-segment control loops, dynamic rapid heating rates, and robust structural safety features, this setup stands ready for rigorous advanced-ceramic sintering applications across premier UK advanced engineering labs.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.

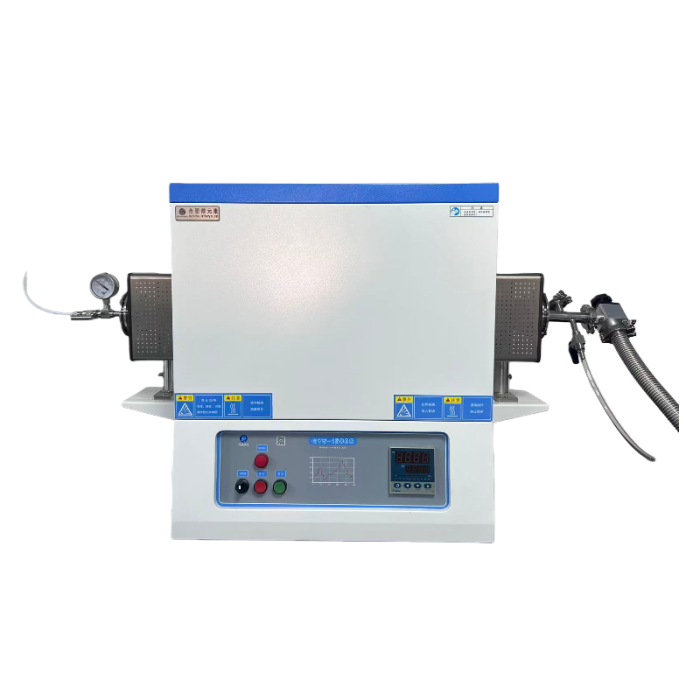

1500°C High-Temperature Corundum Tube Furnace – GYS-1500C Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The GYS-1500C high-temperature series replaces traditional alloy wires with premium Silicon Carbide bars to deliver intensive thermal output required by sophisticated new material formulations.
Key Features & Benefits
- Silicon Carbide (SiC) Heat Drive – Heavy-duty structural heating bars provide high thermal transmission rates and reliable structural balance up to 1500°C.
- Corundum Tube Core – Supplied with high-purity recrystallized alumina (corundum) process tubes to withstand deep continuous high-temperature cycles without warping.
- Optimized Heating Ramp – Programmed loop adjustments control thermal expansion profiles gracefully (≤10°C/min under 1400°C, transitioning to ≤5°C/min above 1400°C).
- Enhanced Core Safety – Outfitted with integrated safety limit cut-outs, cooling fan loop fail-safes, and S-Type tracking blocks.
- Industrial-Grade Control – Leveraging 50-segment PID profiling alongside premier global electrical paths (ABB, UL infrastructure).
Technical Specifications
GYS-1500C-S – Compact High-Temperature Tube Furnace
Continuous Working Temperature: ≤ 1400°C
Heating Zone Length: 170 mm
Corundum Tube Options: Φ50 × 800 mm / Φ60 × 800 mm
Rated Power: 2.6 kW
Voltage: 220V
External Dimensions: 850 × 420 × 670 mm
Weight: ≈ 35 kg
GYS-1500C – Extended High-Temperature Tube Furnace
Continuous Working Temperature: ≤ 1400°C
Heating Zone Length: 300 mm
Corundum Tube Options: Φ60 / Φ80 / Φ100 × 1000 mm
Rated Power: 5.6 kW
Voltage: 220V
External Dimensions: 1010 × 510 × 780 mm
Weight: ≈ 75 kg
* Customisation available. Specifications subject to final confirmation.
Applications
Specially customized for technical ceramic annealing, solid-state battery material discovery, high-order crystals growth synthesis, and sintering under deep vacuum levels or inert gas environments.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | GYS-1500C |
|---|---|
| Furnace Type | Tube Furance |
| Maximum Temperature | 1500°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 300 |
| Dimensions (mm) | 1010mm*510mm*780mm |
| Weight (kg) | 75 |
| Customisation Available | Yes |
| Tube Diameter | 60mm, 80mm, 100mm |
| Number of Heating Zones | 1 |
| Voltage | 220V - 230V |
| Power (kW) | 5.6 |
