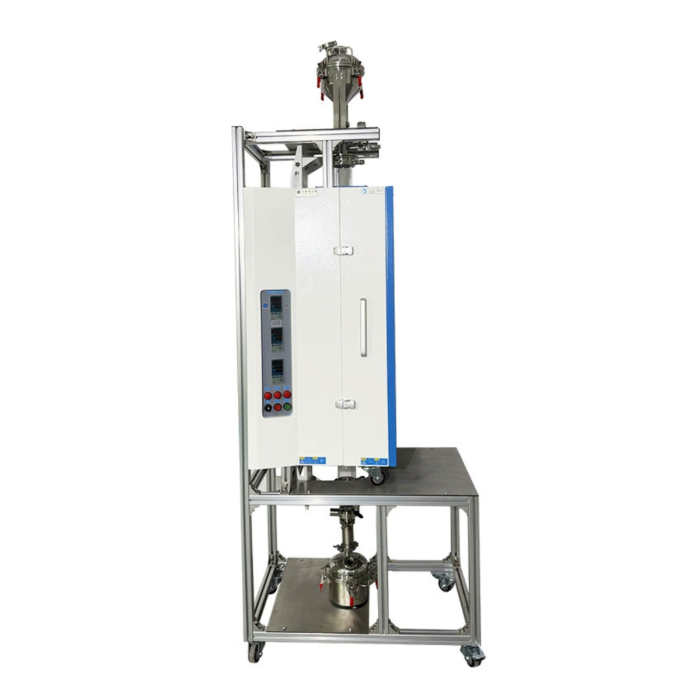

1200°C Vertical Split Tube Furnace
Space-Saving 1200°C Vertical Tube Furnace – Ideal for drop-testing, quenching, and vertical thermal analysis.
The OYS-1200C-VT Series brings professional flip-top heating architecture into a vertical layout up to 1200°C. Available in single or dual-zone configurations, it provides an ideal platform for reactions that require vertical sample positioning or rapid liquid quenching.
Equipped with pre-installed stainless steel vacuum sealing flanges, mechanical pressure gauges, and a 50-segment PID automation module, it delivers full atmosphere flexibility within a minimal bench space[cite: 20].
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1200°C Vertical Split Tube Furnace – VT Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment[cite: 1]. The OYS-1200C-VT series features a vertical split-casing design that allows easy sample dropping, fluid collection, or integration into existing vertical testing rigs[cite: 20].
Key Features & Benefits
- Vertical Orientated Frame – Saves premium bench space and facilitates vertical thermal convection experiments or quench drops[cite: 20].
- Split Casing Design – Openable shell ensures fast cooling rates and simplifies process tube replacement or adjustment[cite: 20].
- Integrated Vacuum Flanges – Ships with heavy-duty stainless-steel end-caps, needle valves, and a high-accuracy mechanical gauge[cite: 20].
- Smart Heat Tracking – Driven by an intelligent YD858 50-step programmer with complete over-temperature safety limits[cite: 20].
- Premium Component Build – Fully features industrial-grade ABB electrical items, K-type sensors, and CE/UL certified components.
Technical Specifications
OYS-1200C-S-VT – Single Zone Compact Vertical Furnace
Continuous Working Temperature: ≤ 1100°C [cite: 20]
Heating Zone Length: 200 mm
Quartz Tube Core: Φ25 × 600 mm / Φ50 × 600 mm
Rated Power: 1.3 kW
Voltage: 220V
Control Logic: Single PID Loop [cite: 20]
OYS-1200C-S-II-VT – Dual Zone Compact Vertical Furnace
Continuous Working Temperature: ≤ 1100°C [cite: 20]
Heating Zone Length: 100 mm + 100 mm
Quartz Tube Core: Φ25 × 600 mm / Φ50 × 600 mm
Rated Power: 1.3 kW
Voltage: 220V
Control Logic: Independent Dual PID Loops [cite: 20]
OYS-1200C-VT – Single Zone Large Vertical Furnace
Continuous Working Temperature: ≤ 1100°C [cite: 20]
Heating Zone Length: 440 mm
Quartz Tube Options: Φ50 / Φ60 / Φ80 / Φ100 × 1000 mm
Rated Power: 3.1 kW
Voltage: 220V
GYS-1200C-II-VT – Dual Zone Large Vertical Furnace
Continuous Working Temperature: ≤ 1100°C [cite: 20]
Heating Zone Length: 200 mm + 200 mm
Quartz Tube Options: Φ50 / Φ60 / Φ80 / Φ100 × 1000 mm / Φ100 × 2000 mm
Rated Power: 11.0 kW
Voltage: 220V
* Customisation available. Specifications subject to final confirmation.
Applications
Ideal for rapid liquid quenching tests, vertical crystal pulling, gravitational calcination, catalyst testing, and vertical structural expansion analysis[cite: 20].
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | OYS-1200C-VT |
|---|---|
| Furnace Type | Vertical Furnaces |
| Maximum Temperature | 1200°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 440mm |
| Weight (kg) | 140 |
| Customisation Available | Yes |
| Tube Diameter | 25mm, 50mm, 60mm, 80mm, 100mm |
| Number of Heating Zones | 1 |
| Voltage | 220V - 230V |
| Power (kW) | 3.1 |
