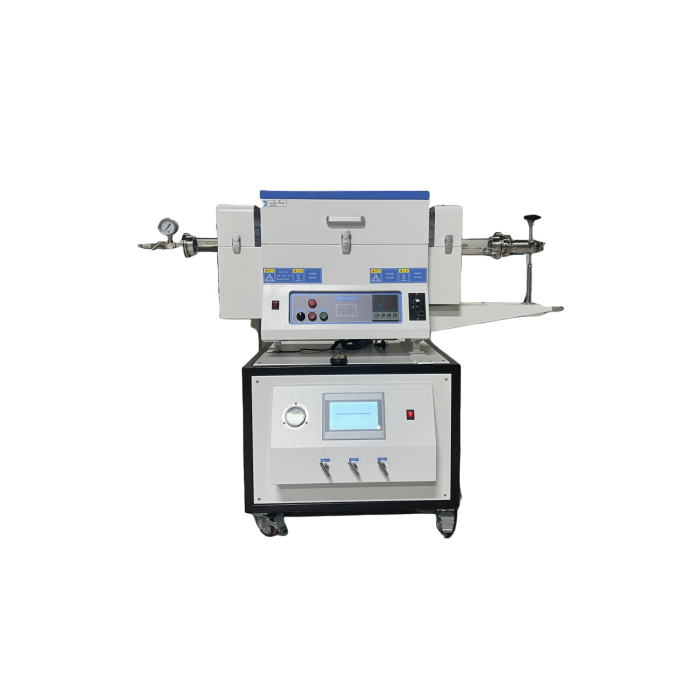

1200°C Tilt-Rotary Tube Furnace
Premium 1200°C Tilt-Rotary Tube Furnace – Integrated gas mixing controls, perfect for ultra-uniform powder sintering and gas-solid reactions.
The OYS-1200C-R100 is an advanced, CE-certified tilt-rotary tube furnace designed to achieve supreme mixing uniformity up to 1200°C with ±1°C accuracy. Built with a heavy-duty mechanical frame, it features an adjustable tilt angle of 0° to 40° and a variable rotation speed of 0 to 10 rpm, ensuring active agitation of powders or granular materials during thermal cycles.
Consolidated with a built-in mobile gas delivery system (available with mass flow controllers or float flowmeters) and a high-purity variable-diameter quartz tube, this system is the premier choice for chemical vapor deposition (CVD), calcination, and catalyst activation in UK material laboratories.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1200°C Tilt-Rotary Tube Furnace – OYS-1200C-R100 Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The OYS-1200C-R100 series tilt-rotary tube furnace is a specialized high-temperature system engineered to solve the challenges of powder agglomeration and non-uniform heating. By combining adjustable tilt angles (0–40°) and continuous horizontal quartz tube rotation (0–10 rpm), the furnace constantly turns over powder samples within the heat field. Integrating these mechanical movements with built-in multi-channel gas delivery systems, researchers across the United Kingdom can execute ultra-uniform chemical vapor reactions, calcinations, and materials synthesis under vacuum or protective gas environments.
Key Features & Benefits
- Adjustable Tilt & Variable Rotation – Mechanical tilt is adjustable from 0° to 40° (maximum recommended operational angle <30°) with a variable rotation speed of 0 to 10 rpm. Features optional dual-direction (forward/reverse) rotation control for thorough sample agitation.
- Integrated Gas Delivery System – Built-in gas management station integrated within the mobile furnace cabinet. Choose between high-precision Mass Flow Controllers (MFC) or budget-friendly float flowmeters, supporting multiple gas inlet streams with pre-installed mixing tanks.
- Custom Variable-Diameter Quartz Tube – Equipped with a high-purity quartz processing tube featuring a Φ60 mm middle section for uniform heating and wider Φ100 mm end sections to maximize material capture and gas venting.
- Advanced Refractory Chamber – Multi-layer high-purity alumina fibre lining coated with US-imported high-temperature alumina coating for maximum heat reflection, rapid thermal response, and excellent energy savings.
- Double-Shell Structural Ventilation – Dual-layer carbon steel chassis with integrated cooling fan loops maintains safe, low outer casing temperatures, complying with strict laboratory safety standards.
- Intelligent Programming – Driven by an YD858 digital PID controller with 30 programmable segments, auto-tuning, and robust safety interlocks protecting against thermal runaway and thermocouple failure.
Technical Specifications
OYS-1200C-R100 – Tilt-Rotary System Specifications
Continuous Working Temperature: ≤ 1100°C
Heating Zone Length: 440 mm
Tilt Adjustment Range: 0° to 40° (Recommended operating angle: ≤ 30°)
Rotation Speed: 0 to 10 rpm (Variable, optional forward/reverse control)
Quartz Tube Dimensions: Φ60 mm (middle) / Φ100 mm (ends) × Total Length 1200 mm
Gas Mixing Station: Integrated, optional 2-channel proton MFC or 3-channel float systems
Mass Flow Controller Ranges: Optional 1-100 SCCM, 1-200 SCCM, or 1-500 SCCM (for CVD configurations)
Rated Power: 3.1 kW
Voltage: 220V Standard Power Interface
External Dimensions: 1300 × 770 × 1200 mm
Weight: Please enquire
Heating Element: Fe-Cr-Al Alloy Wire
Thermocouple: K-Type Sensor
Recommended Heating Rate: ≤ 20°C/min
* Customisation available. Specifications subject to final confirmation.
Applications
Perfect for uniform powder calcining, gas-solid reactions, active material CVD coating, catalyst activation and reduction, battery anode/cathode material heat treatment, and specialized particulate processing under controlled vacuum or inert gas protection.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | OYS-1200C-R100 |
|---|---|
| Furnace Type | Tilting Rotary Tube Furance |
| Maximum Temperature | 1200°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 440mm |
| Dimensions (mm) | 1300mm*770mm*1200mm |
| Customisation Available | No |
| Voltage | 220V - 230V |
| Power (kW) | 3.1 |
