1200°C Sliding Rail Tube Furnace
High-performance 1200°C Sliding Rail Tube Furnace – Engineered for rapid heating, fast cooling cycles, and high-efficiency thermal processing.

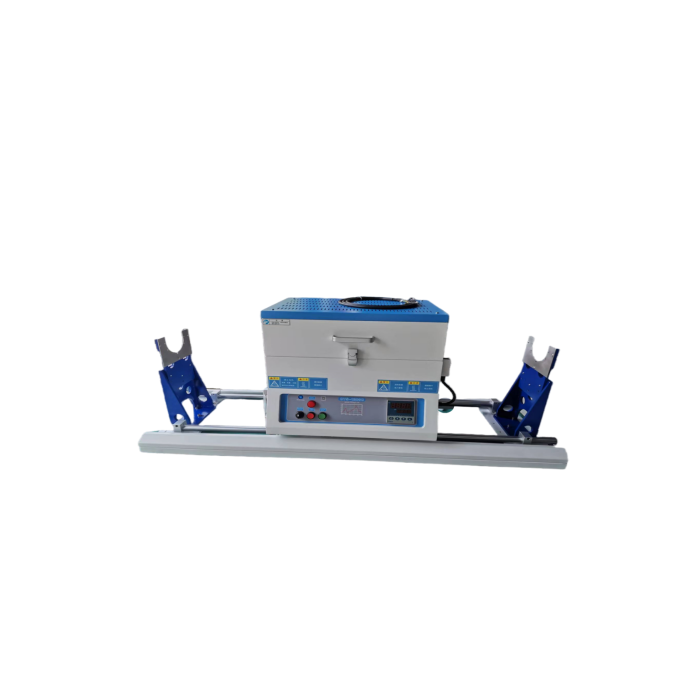

The OYS-1200C-SL is an innovative, CE-certified split tube furnace mounted on high-precision horizontal sliding guide rails up to 1200°C with ±1°C accuracy. It allows operators to pre-heat the furnace chamber out of position and slide it instantly over the sample target to achieve high heating rates, or slide it away after firing to initiate rapid, controlled cooling cycles.
Featuring high-purity alumina fibre insulation, energy-saving Fe-Cr-Al alloy heating wires, an automated split-body power cutoff switch, and an intelligent 50-segment programmable digital controller, this modular sliding system represents the ideal cost-effective solution for Rapid Thermal Processing (RTP) and fast cooling tests.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1200°C Sliding Rail Tube Furnace – OYS-1200C-SL Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The OYS-1200C-SL series sliding rail tube furnace is engineered to deliver low-cost, high-performance Rapid Thermal Processing (RTP) and rapid cooling. By physically sliding the heated furnace body along an extended process tube via heavy-duty horizontal rails, researchers across the United Kingdom can apply immediate heat steps to their samples or slide the heating zone away to achieve instant, natural quenching without disrupting the atmosphere inside the quartz tube.
Key Features & Benefits
- Horizontal Sliding Track System – Dual chrome-plated steel guide rails allow the furnace body to slide smoothly from one side to the other, facilitating rapid thermal shock and fast cooling profiles.
- Fast Heating & Pre-Heat Capability – Pre-heat the furnace chamber out of position to the desired temperature setpoint, then slide it onto the sample zone to achieve exceptional, rapid heating ramps.
- Split-Body Design with Safety Cutoff – The convenient flip-top opening mechanism enables easy sample access. For operator safety, an integrated safety interlock automatically cuts off power to the heating elements the moment the latch is opened.
- Outstanding Thermal Efficiency – Multi-layer high-purity alumina fibre insulation coated with US-imported high-temperature alumina coating maximizes heat reflection, saves power, and maintains low outer chassis temperatures.
- Intelligent Thermal Management – Managed by a premium YD858 PID automation controller with 50 programmable segments, auto-tuning, and robust safety indicators (including overheat and thermocouple break protection).
- Certifications – Constructed in full compliance with international CE, UL, and MET safety protocols using premier global sub-components (ABB switches, Omega sensors, and Yudian/Eurotherm instruments).
Technical Specifications
OYS-1200CSL-440 – Single Zone Sliding Rail Tube Furnace
Continuous Working Temperature: ≤ 1100°C
Heating Zone Length: 440 mm (Single Zone)
Quartz Tube Size Options: Φ25 × 1400 mm / Φ50 × 1400 mm / Φ60 × 1400 mm / Φ80 × 1400 mm / Φ100 × 1400 mm
Rated Power: 3.1 kW
Voltage: 220V Standard Power Interface
External Dimensions (W × D × H): 1680 × 400 × 700 mm
Weight: ≈ 75 kg
Heating Element: Fe-Cr-Al Alloy Wire
Thermocouple: K-Type Sensor
Recommended Heating Rate: ≤ 10°C/min
OYS-1200C-II-SL – Dual Zone Sliding Rail Tube Furnace
Continuous Working Temperature: ≤ 1100°C
Heating Zone Length: 200 mm + 200 mm (Dual Independent Zones)
Quartz Tube Size Options: Φ25 × 1400 mm / Φ50 × 1400 mm / Φ60 × 1400 mm / Φ80 × 1400 mm / Φ100 × 1400 mm
Rated Power: 3.1 kW
Voltage: 220V Standard Power Interface
External Dimensions (W × D × H): 1680 × 600 × 630 mm
Weight: ≈ 75 kg
Control Logic: Independent dual YD858 digital PID controllers with 50 programmable segments
Heating Element: Fe-Cr-Al Alloy Wire
Thermocouple: Dual K-Type Sensors
Recommended Heating Rate: ≤ 10°C/min
* Customisation available. Specifications subject to final confirmation. Note: Tube plugs must be placed in both ends of the quartz tube prior to operation.
Applications
Perfect for low-cost Rapid Thermal Processing (RTP), fast quenching profiles, multi-zone chemical vapor synthesis, controlled crystallization cycles, and advanced thin-film material annealing under vacuum or inert protective gas atmospheres.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | OYS-1200C-SL |
|---|---|
| Furnace Type | Tube Furance |
| Maximum Temperature | 1200°C (short-term < 0.5 h) |
| Heating Zone Length (mm) | 440mm |
| Dimensions (mm) | 1680mm*490mm*700mm |
| Weight (kg) | 75 |
| Customisation Available | No |
| Tube Diameter | 25mm, 50mm, 60mm, 80mm, 100mm |
| Number of Heating Zones | 1 |
| Voltage | 220V - 230V |
| Power (kW) | 3.1 |
