1200°C Crucible Furnace
High-performance 1200°C Top-Loading Crucible Furnace – Engineered for convenient crucible handling and atmospheric thermal processing.

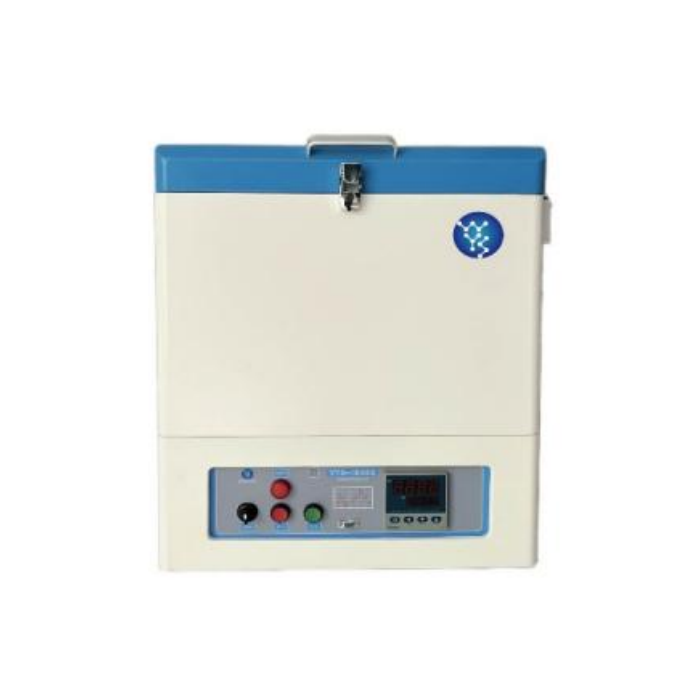

The VYS-1200C is a specialized, CE-certified crucible furnace designed for effortless top-loading crucible placement up to 1200°C with ±1°C accuracy. Built with high-purity alumina fibre insulation and durable thermal alloy elements, it features protective heavy-duty refractory bricks at the bottom to withstand intensive crucible wear during melting, calcining, and sintering.
Equipped with a dual-layer air-cooled shell, a smart 50-segment programmable digital controller, and atmosphere/vacuum compatibility, this top-loading system represents an incredibly robust and user-friendly heating solution for UK metallurgy and advanced materials research.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1200°C Crucible Furnace – VYS-1200C Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The VYS-1200C series crucible furnace utilizes an ergonomic top-loading configuration that is ideally suited for holding vertical crucible setups, heavy glass melts, and advanced metallurgical components. By combining top-entry convenience with superior atmospheric and vacuum capabilities, this robust muffle system allows scientists across the United Kingdom to execute complex calcination, melting, and protective-gas analysis under optimal thermal conditions.
Key Features & Benefits
- Top-Loading Ergonomic Design – Vertical top-entry door mechanism allows straightforward vertical placement of crucibles and material fixtures, minimizing the risks of sample tipping or spilling.
- Integrated Lining Protection – Pre-installed high-durability refractory bricks at the bottom of the muffle chamber shield the softer ceramic-fibre insulation against accidental abrasion, heavy loads, and mechanical wear.
- Vacuum & Controlled Atmosphere – Fully compatible with custom gas inlet manifolds and vacuum pump kits, allowing secure sample processing under vacuum or protective gas streams (such as Argon or Nitrogen).
- Advanced Thermal Refractories – High-purity polycrystalline alumina fibre chamber lined with US-imported high-temperature alumina coating to maximize heat reflection, decrease power dissipation, and extend muffle longevity.
- Double-Shell Ventilation – Double-walled carbon steel housing integrated with forced-air cooling loops maintains low outer casing temperatures, ensuring a safe and comfortable working space.
- Intelligent Programming – Controlled by an YD858 digital PID controller with 50 programmable segments, auto-tuning, and robust safety interlocks protecting against thermal runaway and thermocouple failure.
Technical Specifications
VYS-1200C-9L – Compact Crucible Furnace (9.0L)
Continuous Working Temperature: ≤ 1100°C
Chamber Dimensions (Diameter × Height): Φ240 × 200 mm
Chamber Volume: 9.0 L
Rated Power: 3.5 kW
Voltage: 220V Standard Power Interface
External Dimensions: 630 × 550 × 880 mm
Weight: ≈ 45 kg
Heating Element: Fe-Cr-Al Alloy Wire
Thermocouple: K-Type
Recommended Heating Rate: ≤ 10°C/min
VYS-1200C-22L – Medium Crucible Furnace (22.0L)
Continuous Working Temperature: ≤ 1100°C
Chamber Dimensions (Diameter × Height): Φ320 × 280 mm
Chamber Volume: 22.0 L
Rated Power: 5.5 kW
Voltage: 220V Standard Power Interface
External Dimensions: 640 × 610 × 740 mm
Weight: ≈ 95 kg
Heating Element: Fe-Cr-Al Alloy Wire
Thermocouple: K-Type
Recommended Heating Rate: ≤ 10°C/min
VYS-1200C-28L – High-Capacity Crucible Furnace (28.0L)
Continuous Working Temperature: ≤ 1100°C
Chamber Dimensions (Diameter × Height): Φ300 × 400 mm
Chamber Volume: 28.0 L
Rated Power: 8.0 kW
Voltage: 380V (Three-Phase)
External Dimensions: Please enquire
Weight: Please enquire
Heating Element: Fe-Cr-Al Alloy Wire
Thermocouple: K-Type
Recommended Heating Rate: ≤ 10°C/min
* Customisation available. Specifications subject to final confirmation.
Applications
Perfect for melting of glass or metals inside crucibles, vertical powder calcining, metallurgical slag testing, high-temperature physical and chemical properties analysis, and routine high-temperature reactions under air, vacuum, or inert atmospheres.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | VYS-1200C |
|---|---|
| Furnace Type | Crucible Furance |
| Maximum Temperature | 1200°C (short-term < 0.5 h) |
| Chamber Dimensions | 240mm*220mm |
| Dimensions (mm) | 630mm*550mm*880mm |
| Weight (kg) | 45 |
| Customisation Available | No |
| Voltage | 220V - 230V |
