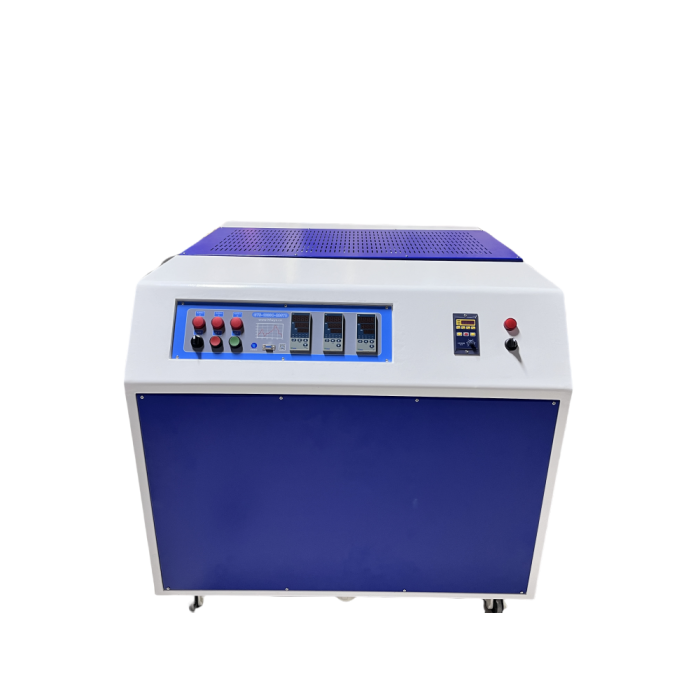

1000°C Rocking Swing Tube Furnace
Advanced 1000°C Rocking Swing Tube Furnace – Engineered for active melt homogenization, crystal refinement, and high-yield thermoelectric material synthesis.
The GYS-1000C-200YB is an industry-leading, CE-certified rocking tube furnace designed to run stable thermal workflows up to 1000°C with ±1°C accuracy. Built on a specialized dynamic frame, it features a controlled swing movement ranging from -30° to +30°. This continuous rocking motion actively agitates liquid melts, accelerating chemical homogenization, preventing phase separation, and refining crystal structure during solidification.
Equipped with a heavy-duty 310S high-temperature stainless steel process tube (available in customizable diameters from Φ50 mm up to Φ200 mm), an independent control system, and a smart 50-segment programmable digital controller, this system is the premier choice for advanced metallurgy and thermoelectric research labs in the UK.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1000°C Rocking Swing Tube Furnace – GYS-1000C-200YB Series
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The GYS-1000C-200YB rocking swing tube furnace is a specialized materials processing platform engineered to address the critical challenges of composition segregation and coarse grain growth. By tilting and rocking the entire furnace body continuously from -30° to +30° during the heating and cooling cycles, the system induces active liquid convection. This dynamic agitation is highly effective at refining grain structures and achieving ultimate chemical uniformity, making it a cornerstone instrument for high-performance thermoelectric material preparation and crystallization studies across the United Kingdom.
Key Features & Benefits
- Continuous Rocking Motion – The heavy-duty structural carriage tilts smoothly from -30° to +30°. Rocking frequency and motion are controlled independently of the thermal system to customize melt agitation.
- Durable 310S Stainless Steel Tube – Outfitted with a high-strength, oxidation-resistant 310S stainless steel reaction tube (diameters range from Φ50 mm to Φ200 mm), delivering excellent thermal shock resistance, outstanding physical ductility, and structural longevity at continuous temperatures up to 900°C.
- Triple Thermocouple Profiling – Outfitted with three independent K-type thermocouples to allow multi-point temperature monitoring and maintain absolute control over the thermal environment.
- Advanced Insulation & Coatings – Chamber constructed from premium polycrystalline alumina fibre panels coated with US-imported high-temperature alumina coating for maximum heat reflection and minimized power consumption.
- Double-Shell Ventilation – Double-walled carbon steel housing integrated with forced-air cooling loops maintains exceptionally low outer casing temperatures, ensuring a safe and comfortable workspace.
- Intelligent Programming – Driven by an YD858 digital PID controller with 50 programmable segments, auto-tuning, and robust safety interlocks protecting against thermal runaway and thermocouple failure.
Technical Specifications
GYS-1000C-200YB – Dynamic Rocking System Specifications
Continuous Working Temperature: ≤ 900°C
Rocking/Swing Range: -30° to +30° (Independent electronic motion controls)
Reaction Tube Material: High-Grade 310S Stainless Steel (Durable & high ductility)
Reaction Tube Size Options: Customizable from Φ50 mm up to Φ200 mm (Standard lengths optimized for swing radius)
Heating Zone Length: Fully customizable based on research specifications
Temperature Control Accuracy: ±1°C
Rated Power: 15.0 kW (High-output configuration, customizable)
Voltage: 220V 50/60Hz Standard Power Interface
Heating Element: Premium Fe-Cr-Al Alloy Wire (0Cr21Al6Nb)
Thermocouple Configuration: 3 × K-Type Sensors (For multi-point spatial monitoring)
Control Logic: YD858 digital PID controller with 50 programmable segments and auto-tuning
Recommended Heating Rate: ≤ 10°C/min
Maximum Heating Rate: ≤ 20°C/min
* Customisation available. Specifications subject to final confirmation. Note: Reaction tube parameters and power profiles can be tailored for specialized material synthesis lines.
Applications
Perfect for thermoelectric material synthesis, semiconductor crystal refinement, metallurgical alloy homogenization, gas-solid-liquid reactive rocking calcination, phase change materials (PCM) discovery, and advanced crystal growth research requiring active physical agitation.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | GYS-1000C-200YB |
|---|---|
| Furnace Type | Tilting Rotary Tube Furance |
| Maximum Temperature | 1000°C (short-term < 0.5 h) |
| Customisation Available | No |
| Voltage | 220V - 230V |
| Power (kW) | 15 |
