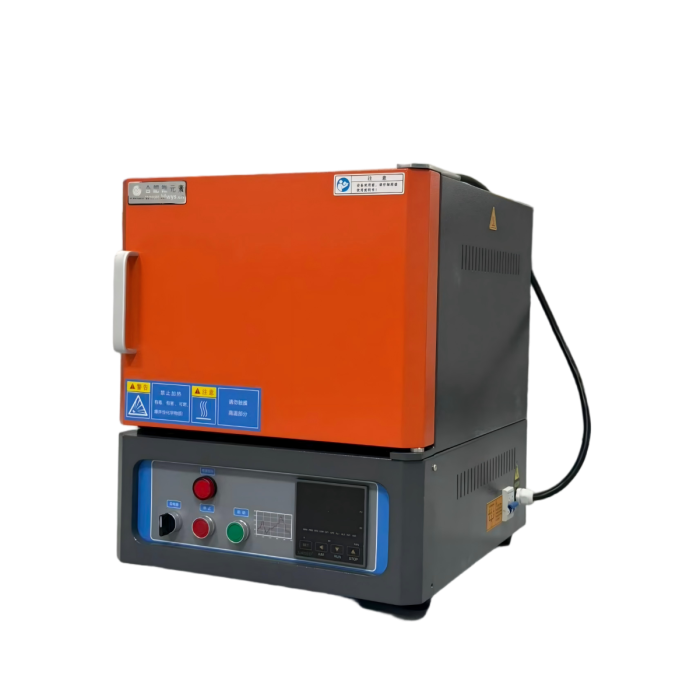

1000°C Corrosion-Resistant High-Alumina Based Muffle Furnace
Chemical-Grade 1000°C Corrosion-Resistant High-Alumina Based Muffle Furnace – Protected heating paths for harsh chemical processing.
The KYS-1000C Series is a robust muffle furnace engineered for tasks involving corrosive or aggressive outgassing up to 1000°C. Its heating element coils are embedded inside dense high-alumina insulation blocks to protect them against chemical degradation.
Featuring a high-density ceramic lining that resists acidic and alkaline attacks, this benchtop system delivers uniform thermal distribution while keeping the outer chassis cool during operation.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.
1000°C Corrosion-Resistant High-Alumina Based Furnace
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment[cite: 1]. The KYS-1000C Series features a unique embedded wire configuration that allows chemical and materials laboratories to incinerate or calcine compounds that destroy exposed heating elements.
Key Features & Benefits
- Embedded Element Coils – Resistance lines are sealed inside protective insulation walls, isolating them from volatile vapors.
- High-Density Alumina Casing – Provides exceptional resistance against acid and alkali corrosion, ensuring an extended service life.
- Uniform Heat Field – Multi-face heat distribution minimizes temperature variation inside the internal testing chamber.
- Double-Walled Air Cooling – Structural ventilation channels keep external shell temperatures low, ensuring a safe laboratory workspace.
- Programmable Tracking – Managed by an intelligent multi-segment temperature controller with independent over-temperature trip paths.
Technical Specifications
KYS-1100C-GL7
Continuous Working Temperature: ≤ 1000°C
Chamber Dimensions: 120 × 200 × 300 mm
Chamber Volume: 7.2 L
Rated Power: 4.2 kW
Voltage: 220V
External Dimensions: 510 × 440 × 570 mm
Net Weight:
KYS-1100C-GL30
Continuous Working Temperature: ≤ 1000°C
Chamber Dimensions: 200 × 300 × 500 mm
Chamber Volume: 30 L
Rated Power: 12 kW
Voltage: 380V
Net Weight: ≈
KYS-1100C-GL72
Continuous Working Temperature: ≤ 1000°C
Chamber Dimensions: 300 × 400 × 600 mm
Chamber Volume: 72 L
Rated Power: 18.0 kW
Voltage: 380V
External Dimensions: 680 × 880 × 910 mm
Net Weight: ≈ 120 kg
* Customisation available. Specifications subject to final confirmation.
Applications
Perfect for acidic/alkaline chemical treatments, waste material incineration, advanced metallurgy analysis, and harsh industrial quality checks.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | KYS-1000C-GL7 |
|---|---|
| Furnace Type | Muffle Furance |
| Maximum Temperature | 1000°C (short-term < 0.5 h) |
| Chamber Dimensions | 120mm*200mm*300mm |
| Dimensions (mm) | 510mm-440mm*570mm |
| Weight (kg) | 100 |
| Customisation Available | Yes |
| Chamber Volumne | 7.2L |
| Voltage | 220V - 230V |
| Power (kW) | 4.1 |
