100°C 4-Channel High-Throughput Muffle Furnace
Innovative 1100°C 4-Channel High-Throughput Muffle Furnace – Engineered for parallel material screening and high-efficiency research.
The KYS-1100C-S-4MG is a specialized high-throughput thermal treatment system allowing UK laboratories to run four independent firing programs simultaneously up to 1100°C. Each of the four isolated chambers operates as an individual muffle zone with its own dedicated PID control loop, allowing different materials to be treated under completely unique temperature curves concurrently.
Equipped with a central touch-screen master console, high-reflectivity alumina fibre insulation, and energy-efficient Fe-Cr-Al alloy elements, this ultra-compact multi-chamber system saves valuable laboratory bench space while drastically accelerating materials discovery workflows.
Exclusive UK Distributor: Benli Lab – Direct from Hefei Weiyuansu with full local technical support.

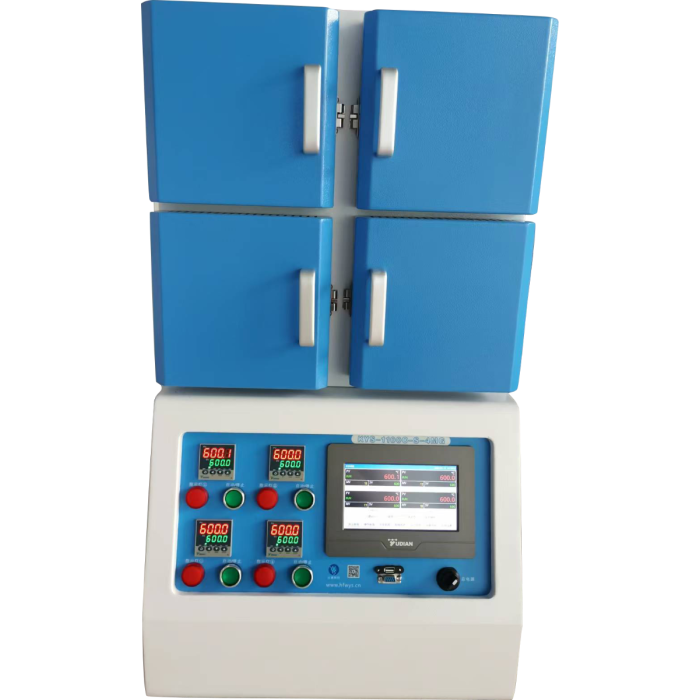

1100°C 4-Channel High-Throughput Multi-Muffle Furnace – KYS-1100C-S-4MG
Benli Lab is the Exclusive UK Distributor of Hefei Weiyuansu Laboratory Equipment. The KYS-1100C-S-4MG high-throughput muffle furnace leverages combinatorial methodology to fundamentally accelerate laboratory workflows. By consolidating four isolated, independently programmed thermal cells into a single, compact benchtop footprint, this system allows scientists to sinter, calcine, or test four different sample groups at separate temperatures simultaneously.
Key Features & Benefits
- Four Independent Heating Channels – Execute up to four distinct temperature profiles at the same time. Each chamber functions as an autonomous muffle zone for rapid comparative testing.
- Central Touch-Screen Command Panel – Features an intuitive touch-screen interface combined with advanced control modules. Manage and view individual zone PID curves, trigger group firing runs with a single command, or manually adjust single cells.
- Compact, Space-Saving Footprint – Replaces four traditional stand-alone muffle furnaces with one integrated, highly efficient cabinet, saving substantial bench space and minimizing aggregate power draws.
- Excellent Inter-Chamber Isolation – High-purity alumina fibre chambers lined with US-imported high-reflectivity alumina coatings maximize thermal containment and prevent heat cross-talk between adjacent cells.
- Double-Shell Structure & Safeties – Integrated cooling fan ventilation paths keep the external steel chassis safe to touch. Features active over-temperature alarms and thermocouple-break (broken-couple) safety cutoffs for unattended automation.
- Certified Assembly – Built to conform with strict international CE, UL, and MET standards using premium global sub-components (such as ABB electrical systems and Omega sensor nodes).
Technical Specifications
KYS-1100C-S-4MG – High-Throughput 4-Chamber Specifications
Continuous Working Temperature: ≤ 1000°C
Power Profile: 1.3 kW per individual chamber (6.0 kW total combined peak)
Voltage: 220V 50/60Hz Standard Power Interface
Isolated Heating Zones: 4 Chambers with independent control systems
Single Chamber Volume: 1.3 L per chamber
Single Chamber Size (W × H × D): 100 × 100 × 130 mm (per chamber)
Thermocouples: 4 × K-Type Sensors
Heating Elements: Premium Fe-Cr-Al Alloy Wire (0Cr21Al6Nb)
Control Logic: Touch-screen display + 4 independent 50-segment PID controllers
Recommended Heating Rate: ≤ 10°C/min
* Customisation available. Specifications subject to final confirmation.
Applications
Optimized for combinatorial materials discovery, high-throughput ceramic screening, rapid powder metallurgy development, parallel alloy heat-treatment mapping, and routine quality control tests requiring high-efficiency sample throughput.
Why Choose Benli Lab? Direct factory access ensures genuine equipment, best pricing, customisation options, and dedicated UK-based technical support, installation guidance, and after-sales service.
Benli Lab – Empowering UK Research with Innovative High-Temperature Laboratory Solutions
| Model | KYS-110C-S-4MG |
|---|---|
| Furnace Type | Muffle Furance |
| Maximum Temperature | 1100°C (short-term < 0.5 h) |
| Chamber Dimensions | 4 X 100mm*130mm*100mm |
| Customisation Available | No |
| Chamber Volumne | 1.3L |
| Voltage | 220V - 230V |
